Analysis: Tesla Model 3 Charges Faster At CCS2 Than Supercharger

The difference in the 20-80% SOC window is noticeable.

Tesla Model 3

Mark Kane

By: Mark Kane

May 17, 2021 at 10:06am ET

Add InsideEVs as a preferred source in Google

Comment

After the most recent DC fast charging analysis of the Tesla Model 3 Long Range AWD at a Tesla V3 Supercharging station (up to 250 kW), let's now take a look at the charging results at a general CCS Combo 2 charger in Europe.

In Europe, the Model 3 comes with a CCS Combo 2 compatible charging inlet (for both AC and DC charging), which means that it can use third-party ultra-fast chargers with CCS2 plugs.

Model S/X are equipped with a Type 2 compatible charging inlet (for both AC and DC charging). DC charging is possible at Superchargers or - through an adapter - at CCS2.

Tesla has retrofitted its Supercharging network in Europe with additional CCS2 plugs for the Model 3 and allowed it to charge also at third-party networks at up to 200 kW (in the case of the Long-Range battery version).

In this post, we will check how the CCS2 and V3 SC charging curves compare because the results might be surprising.

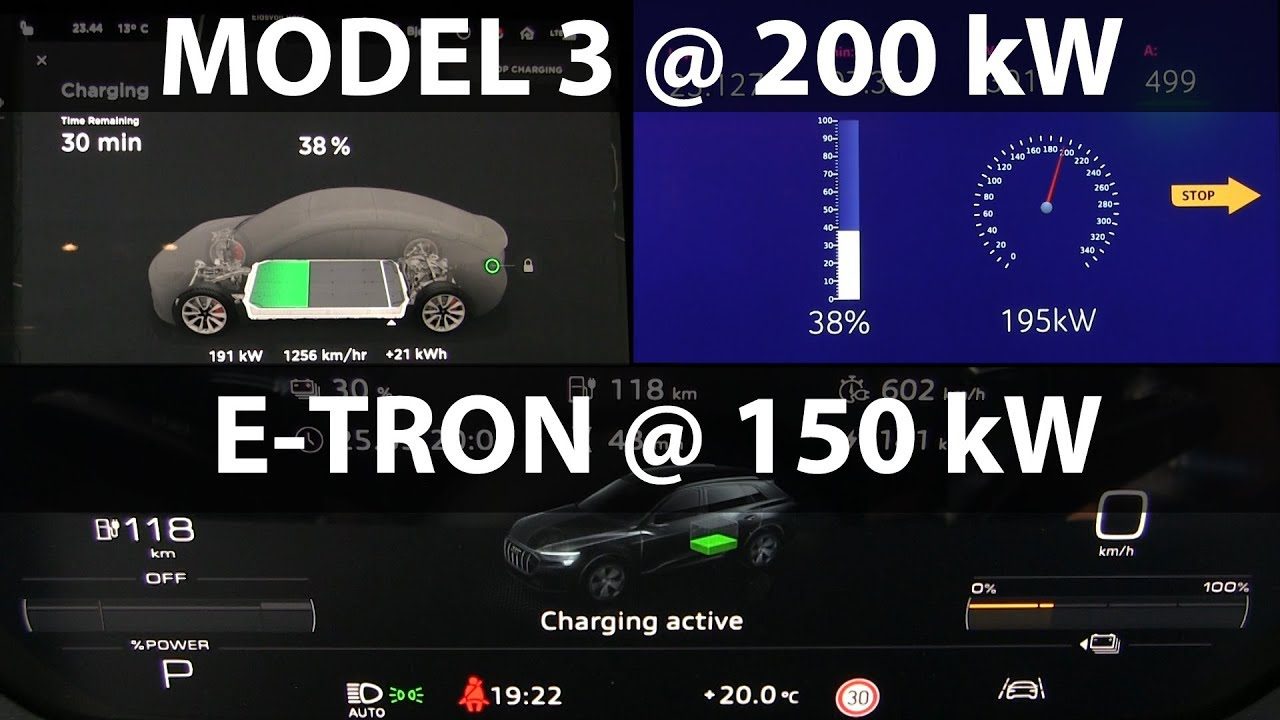

Data for the CCS2 charging comes from Fastned charging network (they are very similar to Bjørn Nyland's charging test at IONITY - see video at the bottom) and from the previous post (Tom Moloughney's tests).

Comparison of charging power

First of all, the charging curve at CCS2 chargers is different than at the V3 Superchargers. It looks capped through a current limit in the first part.

Charging never exceeds 200 kW (the peak is actually around 195 kW) despite the fact that Fastned's charger was rated at up to 300 kW.

In effect, in the first part of the session, charging is at a much lower, stable level (slowly growing up to around 40% SOC).

An interesting thing is that while charging at a V3 Supercharger, at some point, the power rapidly decreases. However, at CCS2 it continues normally, exceeding Supercharger output up to 60% SOC or so.

This is the crucial part - probably related mainly to the battery heating at high power of 250 kW. Power must be quickly limited to not exceed temperature limits. In the case of CCS2 charging at a lower level, heating issue is not as big so the charging might continue.

At higher SOC, the difference is marginal.

external_image

The average charging power in the very important range from 20% to 80% SOC is 128 kW, which is 66% of the peak value.

For comparison, in the case of the 2021 Tesla Model 3 at V3 SC, it was 106 kW (113 kW in the 2019 version).

It's a surprise that you can achieve a 20% higher average (13% vs the 2019 version) than on a V3 Supercharger.

external_image

Surely, someone would say that starting at 10% would change the result, but you know what? Not so much.

Having the advantage of 250 kW improves that average, but the CCS2 still wins:

DC Fast Charging Comparison by InsideEVs Model
[data source] Drive /
Battery
(kWh) Max
Power Avg
Power
(20-80%) Avg
Power
(10-80%) 2019-2020 Tesla Model 3 LR
[Fastned] AWD
75 kWh 195 kW 128 kW 131 kW
(from 11%) 2021 Tesla Model 3 LR AWD (V3 SV)
[Tom Moloughney] AWD
80 kWh 250 kW 106 kW 115 kW 2019 Tesla Model 3 LR AWD (V3 SV)
[Tom Moloughney] AWD
75 kWh 250 kW 113 kW 121 kW

So maybe the manufacturers should not pursue the ultra-high peak charging levels, but just focus on a consistent and ultimately slightly higher average?

Comparison of C-rate

The peak C-rate* - charging power in relation to the total battery capacity of 75 kWh (our guess) - is about 2.6C. The 2021 model year is probably close to 80 kWh (our guess).

The average C-rate when charging from 20% to 80% SOC is 1.7C.

*C-rate tells us how the charging power relates to the battery pack capacity. For example: 1C is 1-hour charging power (current), when the power value in kW is equal to the battery pack capacity in kWh. 2C would be enough to recharge in half an hour.

As we can see, at CCS2 the battery cells are also under a lower peak load:

external_image

We don't know how quickly the Model 3 charged from 20% to 80% SOC at Fastned's CCS2 charger, but it could be a 1-2 minute quicker than at a V3 SC (maybe under 23 minutes). In Bjørn Nyland's charging test at an IONITY charger, it was roughly 23 minutes.

In other words, another win for the CCS2.

DC Fast Charging Comparison by InsideEVs Model
[data source] Drive /
Battery
(kWh) Max
Power Avg
Power
(20-80%) Max
C-Rate Avg
C-Rate
(20-80%) Time
(20-80%) 2019-2020 Tesla Model 3 LR
[Fastned] AWD
75 kWh 195 kW 128 kW 2.6 1.7 23 min
est. 2021 Tesla Model 3 LR AWD (V3 SV)
[Tom Moloughney] AWD
80 kWh 250 kW 106 kW 3.1 1.3 26 min 2019 Tesla Model 3 LR AWD (V3 SV)
[Tom Moloughney] AWD
75 kWh 250 kW 113 kW 3.3 1.5 24 min

Comparison of range replenishing speed

The rate of range replenishing depends on the energy consumption and the energy consumption depends on the use case.

Assuming the individual WLTP range ratings for all of the cars and available battery capacity (often only a guess or indirect measure in an inconsistent way between the cars), we noted that in the 20% to 80% SOC window, the CCS2 appears to be roughly 5-10% quicker.

external_image

We would not pay much attention to the range replenishing rate numbers though.

DC Fast Charging Comparison by InsideEVs Model
[data source] Drive /
Battery
(kWh) Avg
Power
(20-80%) WLTP range
rep. rate
(20-80%) 2019-2020 Tesla Model 3
LR (CCS2)
[Fastned] AWD
75 kWh 128 kW 16.6 km/min
10.3 mi/min 2021 Tesla Model 3
LR AWD (V3 SV)
[Tom Moloughney] AWD
80 kWh 106 kW 14.9 km/min
9.3 mi/min 2019 Tesla Model 3
LR AWD (V3 SV)
[Tom Moloughney] AWD
75 kWh 113 kW 15.6 km/min
9.7 mi/min

Conclusions

The comparison of CCS2 and V3 SC charging curves once again proves that high peak charging values does not guarantee the highest charging speed in popular SOC windows.

Despite that the Tesla Model 3 is not exceeding 200 kW at third-party CCS2 chargers in Europe, it might be actually as fast or even faster than at 250 kW V3 Tesla Superchargers in 20-80% SOC window. That's a surprise because we expected Superchargers to offer noticeably faster charging due to the limited power on the general CCS2.

We guess that battery heating during the charging process significantly limits the sense of pursuing high peak charging values.

The current strategy appears to be: achieve maximum power value at any given time (and lower it if needed to not exceed the maximum temperature).

Maybe the optimum strategy to achieve the lowest charging time up to 80% SOC would be to glide at a lower level, closer to 200 kW also at V3 Superchargers? It would require taking into account the overall battery profile in the most popular charging windows.

More fast charging

2021 Tesla Model 3 SR+ Fast Charging Analysis: Slower Than 2020

Tesla Model 3 SR+ Vs Volkswagen ID.3: Fast Charging Comparison

General info:

What do you think?

View

Comments

** Some values on the charts are estimated from the data source.*

* Temperature of the battery cells might highly negatively affect charging capabilities. We don't have data about temperatures of the battery at the beginning and during the charging process. In cold or hot weather, as well as after driving very dynamically, charging power might be significantly lower than shown on the charts (in extreme cases charging might be impossible until the battery temperature will not return to an acceptable level).*
