Tesla Uses 3D Printing To Fix Mistake In Model Y HVAC Airbox

And we thought the most interesting part of the video would be about the Octovalve…

Gustavo Henrique Ruffo

By: Gustavo Henrique Ruffo

Apr 21, 2020 at 3:44pm ET

Add InsideEVs as a preferred source in Google

Comment

The latest video from the Tesla Model Y teardown process seemed to be about the Octovalve. Sandy Munro started it by talking about that part, bringing some entertaining information about the way it is made, but the real star in this video is the HVAC module. To be more specific, its airbox – an injection-molded part.

Munro sees there is one part of it that presents little ridges, clearly made with 3D printing. But why would that be necessary for a molded component? According to Munro, because the airbox must have some sort of manufacturing issue.

Gallery: Sandy Munro Model Y Teardown

The Tesla Model Y Rear Mega Casting Reveals Itself In Video Teardown

Sandy Munro Model Y tear Down screen shots

That is a positive way of looking into that, but this is not what happens in legacy automakers. Most do what is called “Verification of Process.” In short, it performs the assembly of cars as an experiment to train workers and also to check it everything will go as planned. If anything fails, it is fixed before the SOP – Start of Production.

Tesla Uses 3D Printing To Fix Mistake In Model Y HVAC Airbox

By 3D printing the airbox, the impression we have is that Tesla thought everything was settled and started producing the Model Y without checking. When the company realized the airbox had an issue, it improvised this fix to get the first cars to their owners.

Another possibility is that Tesla verified the assembly process, found the issue, and decided it would take too much time to get it fixed. In order not to delay it, the company came up with the 3D printing solution to get the production going and deliver its first Model Y on Friday the 13th, back in March.

Tesla Uses 3D Printing To Fix Mistake In Model Y HVAC Airbox

That all would make sense if Tesla had a reputation to keep in delivering cars and new features in the schedule it promised them. That is not the case. If it were, we would probably already have autonomous vehicles by now.

But it gets even weirder: The Model Y was expected just by the end of 2020. As far as we know, there was no reason to rush its delivery. If it were delivered on time, that would be just as good as having the car so early. It would not harm the company’s reputation.

What do you think?

View

Comments

All things considered, why the rush? This is not a first in the Model Y’s short history. After only 27 days of its presentation, Tesla decided to start to offer a tow hitch. Why not from the start?

Tesla Uses 3D Printing To Fix Mistake In Model Y HVAC Airbox

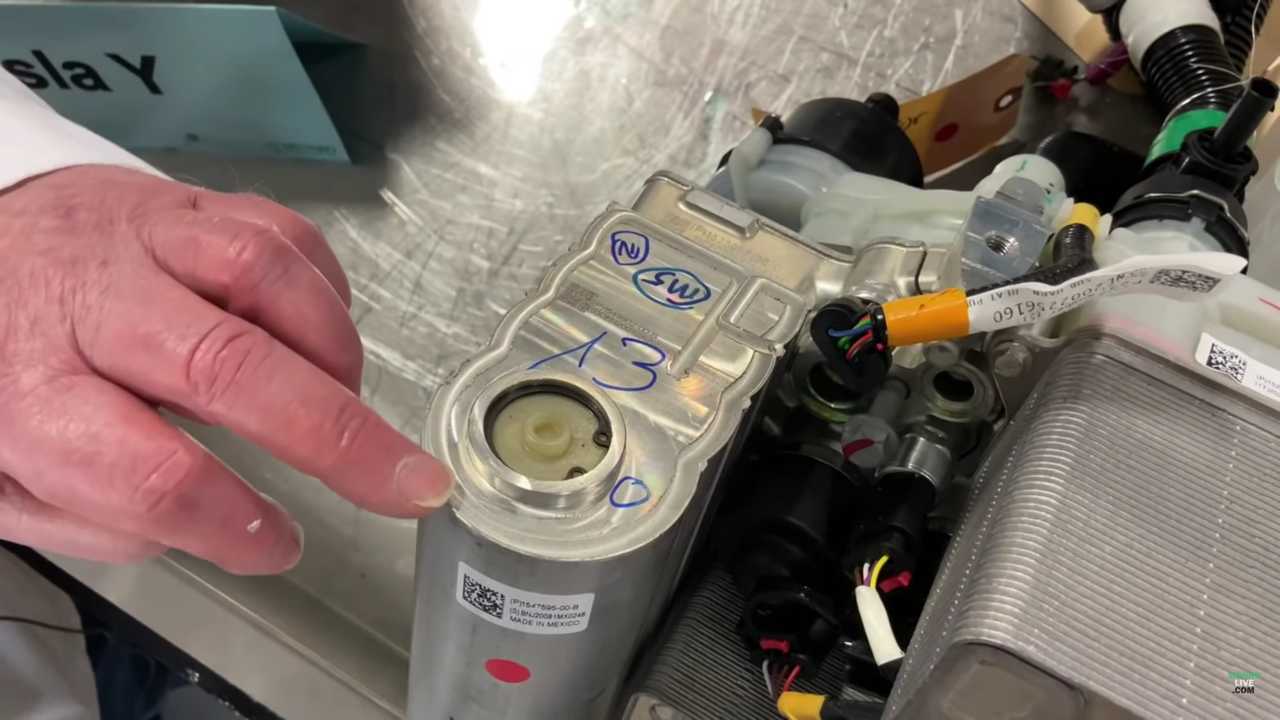

In the end, we discovered the Octovalve has tiny slots made with EDM (Electrical Discharge Machining) – for thermal expansion, like expansion joints in buildings. And also that it uses friction stir welding on aluminum parts. Anyway, what we really want to find out is more about the airbox. We hope the 3D temporary fix is reliable and that it does not become a permanent solution.
