Could Tesla Model 3 Performance Match Taycan’s 24-Hr Endurance Record?

We use track data, charging data, and some simple math to estimate results.

Tesla Model 3 Faces Hyundai Kona For EVs, BMW 3 Series For Sedans

George Bower

By: George Bower

Aug 28, 2019 at 11:04am ET

Add InsideEVs as a preferred source in Google

Comment

Our preliminary estimate is that Tesla Model 3 Performance, due to high battery temps, would not be able to charge at 250 kW like the Taycan at the high ambient temps encountered at the Nardo track, and that the total miles the Model 3 could accumulate during a simulated 24-hour endurance test would be 1,930 miles versus the 2,129 miles attained by the Porsche Taycan.

In the event that we are wrong and the Model 3 Performance can charge at the V3 Supercharger rate without overheating, it would achieve the same as Taycan’s total miles.

Discussion

As we mentioned, our analysis is based on data and also some simple math and modeling using our performance model and our battery cooling model. Therefore, these results are subject to many assumptions and should be considered preliminary at best. The best way to prove us wrong would be for Tesla to run the same endurance test.

For the Porsche data, we used the 24-hour endurance test (ref) in which the Taycan achieved a nearly constant 127-mph average speed over a 24-hour period at the Nardo oval track in Italy. Including charging stops, the Taycan was able to cover 2,129 miles in hot ambient conditions with peak temps as high as 40C (104F) ambient and 54C (129F) on the track. The performance model allowed us to determine the battery pack load at 127 mph. We assumed the Taycan would be charging at a nearly constant 250 kW during its approximate 12-minute charging stop.

Our Model 3 Performance estimates are based on V3 Supercharging data collected by Tesla Motors Club members Zoomit, MarcG, and others. That thread can be found here. The charging profiles we used are shown below.

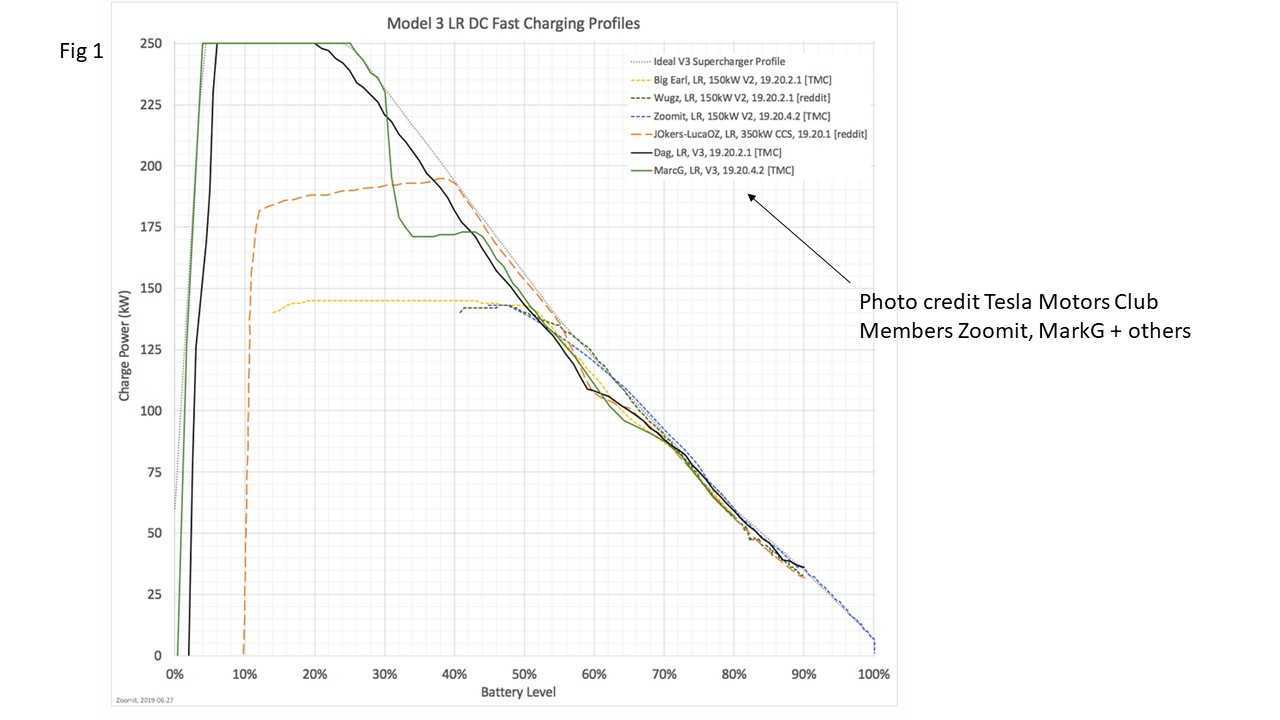

model 3 taycan slides

Model 3 charging profiles used in our analysis

Similar to our analysis of the Taycan, we used our performance model to estimate the battery loading at 127 mph for the Model 3, along with other parameters. We also used our battery cooling model to determine battery temperatures at Nardo track conditions. The model predicted no overtemp for the Porsche Taycan at track conditions.

The Porsche Taycan completed the endurance run without any noted overheating issues. However, based on our modeling of the charging profiles for the Model 3, we estimate that the Model 3 Performance would not be able to hold a 250 kW charge rate without overheating at the 104F ambient temperatures that existed at the Nardo test track during the Taycan's run.

Looking at the Model 3 V3 Supercharging profile in figure 3 above, it was postulated in the TMC thread that the sharp cutback in charging power at 25% state of charge was due to a thermal overload of the pack.

Our battery cooling model also predicts this same thermal overheating.

Per ME systems modeling and analysis:

Conclusions:

Even in mild SF Bay Area summer conditions (68F = 20C) (or Hawthorne CA conditions where MT did their test), the V3 SC peak 250 rate can quickly overload the thermal mass of the pack and the charge rate will drop to a more sustainably coolable level.

In hot weather, it is likely the drop will happen much sooner (or never start at 250 kW at all) and probably to a lower kW level...possibly to the 150 kW level where the V2 chargers are maxing out.

You may not see a V3 SC in Phoenix or Vegas...at least not with the current M3 pack + TMS design.

In really hot weather, like that of the Nardo test track when the Taycan did its endurance run (42C peak, 32C low...their weather reports shows lows of about 10C below the highs), the Model 3 would probably only be able to charge at the V2 charging schedule...150 kW to 50% SOC, then taper to 60 kW @ 80%.

This may sound like a contradiction to our previous analysis where we showed that the overall thermal conductivity of the Model 3 cooling system was nearly twice as good as the Porsche/Audi flat plate cooling system. We stand by that assumption and it is still a basic part of our battery cooling model. However, the total cooling system performance is comprised of more than just the thermal conductivity.

The internal resistance of the cells also comes into play, and our research indicates that Tesla’s high energy density NCA cells have a higher internal resistance than Porsche’s NMC cells on an equivalent kWh basis. Also, couple that with the (postulated) 10% oversizing of the Porsche battery. In other words, Porsche only uses 90% of its total battery kWh’s.

So, the lower internal resistance of the cell itself PLUS an oversizing of the pack kWh’s results in a lower internal resistance, and therefore, lower heat rejection from the Porsche pack. Porsche’s 2-speed gearbox probably plays a part as well. This may be why Porsche can get away with a (postulated) flat plate cooling system and why Tesla needs a robust cooling system where the cooling ribbon is glued right to the 2170 cell.

What do you think?

View

Comments

The detailed calculation sheets are included below:

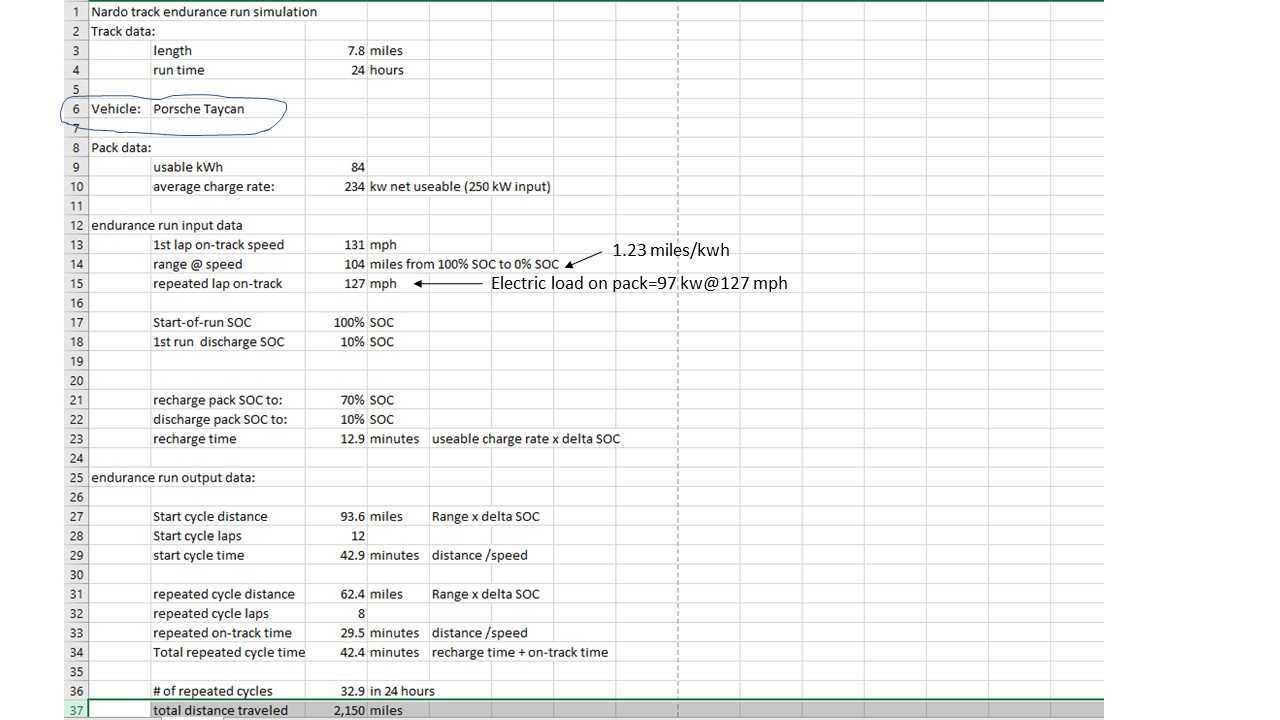

Model 3 Taycan take 2

Porsche Taycan endurance run calcs

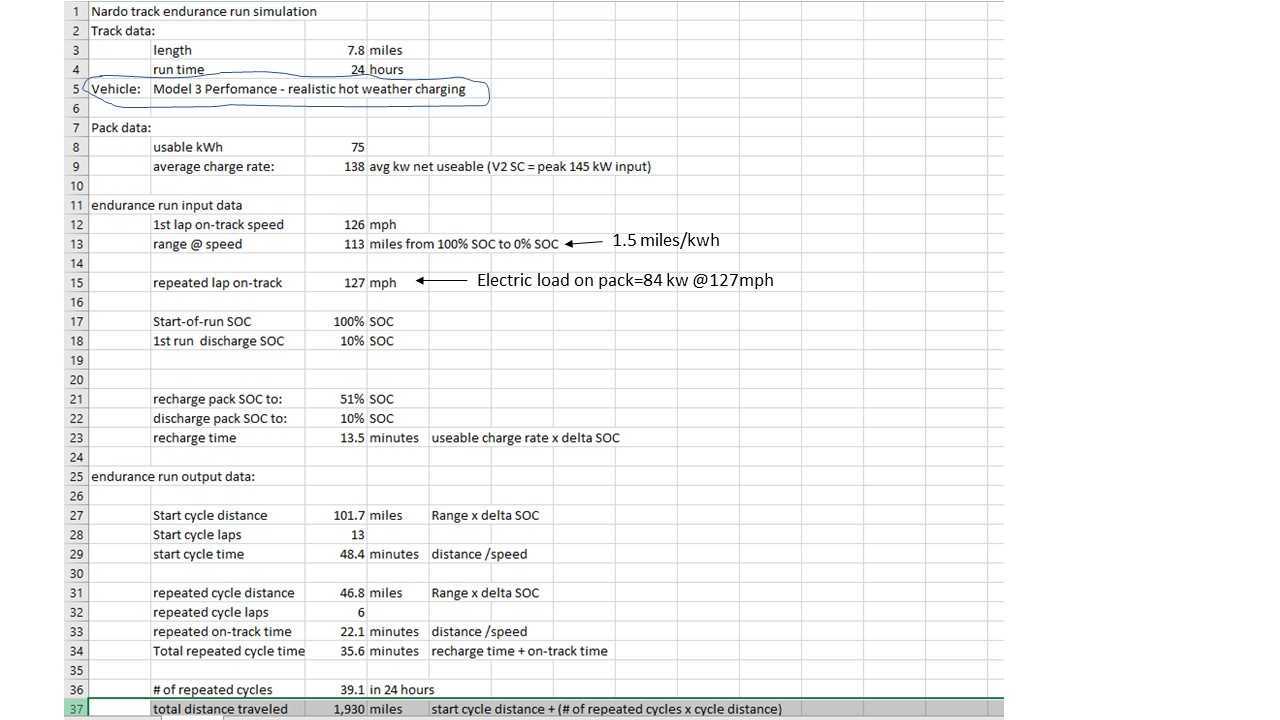

Model 3 Taycan take 2

Tesla Model 3P endurance run calcs @ hot Nardo track temps

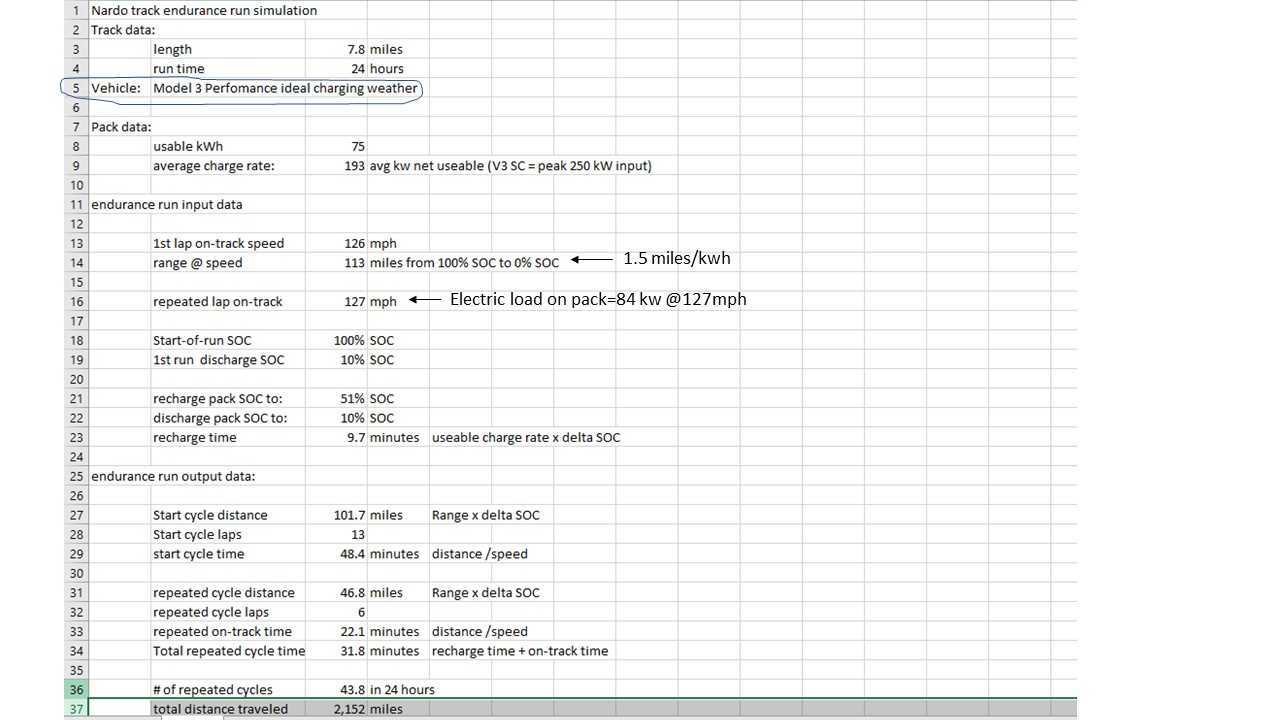

Model 3 Taycan take 2

Tesla Model 3P endurance run calcs @ ideal track temps

Credit: Keith Ritter (HVACman) owner of ME systems engineering
