Here's What The Tesla Cybertruck's Battery Passport Reveals

Battery capacity, chemistry, the 4680 cell number and even energy density.

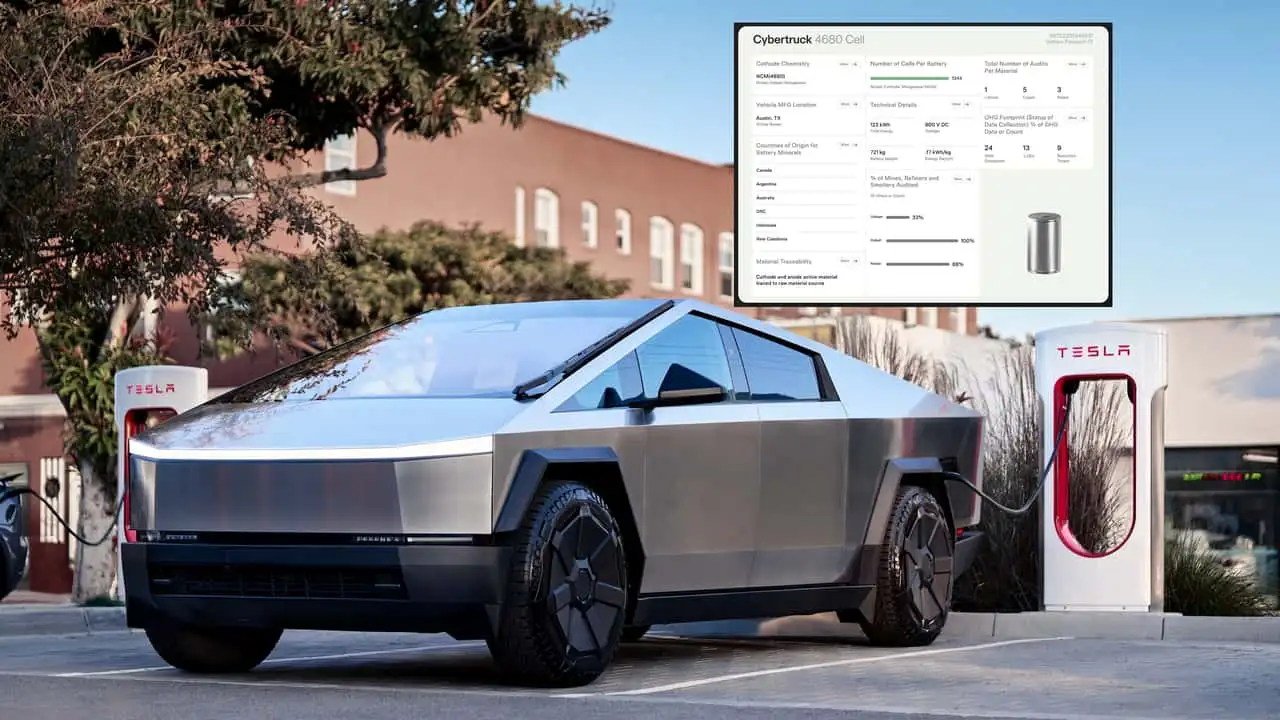

Tesla Cybertruck 4680 Cell Battery Passport

Mark Kane

By: Mark Kane

Jul 1, 2024 at 11:00am ET

Add InsideEVs as a preferred source in Google

Comment

Over the years, Tesla has accustomed us to being rather silent about technical details related to its batteries. Even the battery capacity of particular EV models isn't shown on the company's website. But we found an interesting exception.

In the 2023 Impact Report on page 109, Tesla showed the Cybertruck's battery passport with neat details of the 4680-type cylindrical battery cells and the structural battery pack.

Get Fully Charged

4680-type cylindrical cells

The 4680-type cylindrical battery cells (with a diameter of 46 mm and height of 80 mm) are the largest cylindrical cells used in EVs so far (about five times compared to the 2170-type). Depending on the manufacturer, the height might differ (some other sizes will be 4695 and 46120).

Some of the information directly confirms what we already know from other unofficial sources, including teardowns, while some data are new. All things deserve a small summary, as Tesla's in-house 4680 batteries will be the reference point for future generations of the new cell format. It will soon be produced by other suppliers and used by other carmakers.

Let's start with the chemistry. Tesla uses a Nickel-Cobalt-Manganese (NCM) lithium-ion cathode chemistry, as pointed out in The Limiting Factor's teardown in mid-2022.

There are 1,344 individual battery cells in one Tesla Cybertruck's battery, with a combined total energy of 123 kilowatt-hours. This allows us to calculate that an individual cell has 91.5 Wh of capacity.

The company shows also that the battery's weight is almost 1,600 lbs (721 kg). That's roughly 24% of the whole Cybertruck AWD version (6,603 lbs or nearly 3,000 kg).

Because the battery is a structural element of the vehicle, some of this weight is offset. Nonetheless, the battery pack is heavy. Its gravimetric energy density is 0.17 kWh/kg. That's not a bad result, but there seems to be room for improvement.

Tesla Cybertruck 4680 cell battery passport info:

lithium-ion chemistry: Nickel-Cobalt-Manganese (NCM) cathode
cell form factor: 4680-type cylindrical (a diameter of 46 mm and height of 80 mm)
number of cells per pack: 1,344 cells
pack capacity: 123 kWh
cell capacity: about 91.5 Wh
system voltage: 800 volt (class)
battery weight: 1,589.5 lbs (721 kg)
energy density: about 0.17 kWh/kg (170 Wh/kg)
estimated driving range: 340 miles (AWD version), 320 miles (Cyberbeast)

Later this year, the Tesla Cybertruck AWD and Cyberbeast versions will offer a range extender option. With an estimated increase in range of about 38% (respectively 470+ and 440+ miles), the additional capacity will be around 47 kWh, for a total of about 170 kWh.

What do you think?

View

Comments

In 2025, Tesla also intends to launch an entry-level RWD version with a smaller battery and shorter range of roughly 250 miles.

We are eager to see what happens next with the 4680-type cells. The Tesla Cybertruck's battery cells are already about 10% more energy-dense than the initial ones used in one of the Tesla Model Y versions, specifically the Model Y AWD from Texas, which was retired in 2023. As with any new cell format, there is substantial potential for improvement before the technology matures.

Tesla's 4680-type cylindrical battery cell
