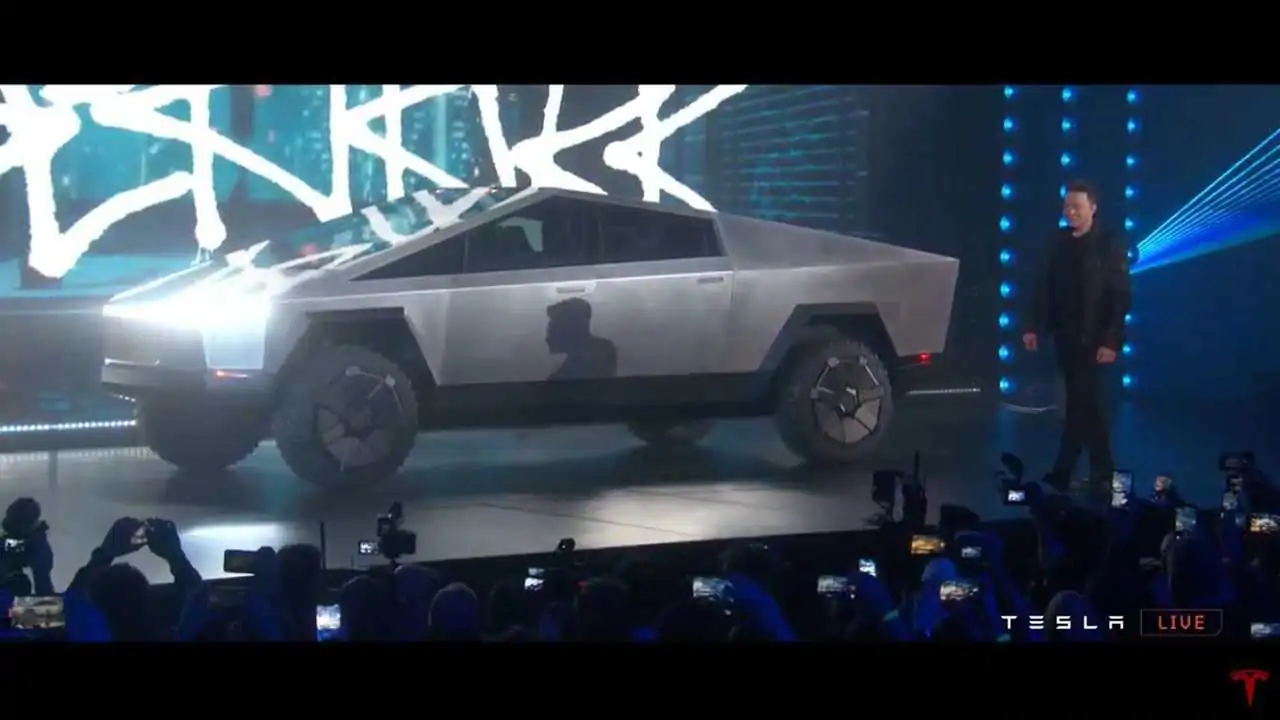

tesla cybertruck lead

George Bower

By: George Bower

Dec 22, 2019 at 2:43pm ET

Add InsideEVs as a preferred source in Google

Comment

Tesla has something up its sleeve and, as usual, it's not telling anyone about it yet. We should get a better idea of what it is at the upcoming “Powertrain and Battery Day” that Tesla has planned for later this year.

Related EV Battery Coverage:

Tesla Model 3 To Get 100 kWh Battery? Hacked Code Shows Possibility

Detailed Modeling: Tesla Cybertruck 500-Mile Tri-Motor Battery & HP

Tesla has given us some strong hints so far: it seems all but certain it will make its own line of batteries (ref), and that these new batteries will be manufactured with a completely new process. Witness Tesla's purchase of Hibar, a company that makes custom battery manufacturing equipment and its purchase of Maxwell, with its new dry electrode manufacturing process (ref). Now, mix that with Tesla's patent application for a whole new manufacturing method for battery packs (ref).

No longer will we have two separate manufacturing processes where one plant makes cells and another makes packs. Tesla’s new approach will integrate the two manufacturing processes into one. We speculate that what comes out of the plant won’t be individual cells, it will be small cell groups. These small cell groups will be assembled like Lego blocks into whole battery packs.

external_image

What about the cooling system? We are going to go out on a limb here and speculate that Tesla will ditch its current “cooling snake” concept where the cooling tube is glued directly to the cells.

external_image

If the cooling snake is out, then how will they cool the cells? We think the answer is hidden in two places: Tesla’s patent app and Rivian.

What do Rivian, the Tesla Semi truck and the Cybertruck have in common?

They all stack batteries. Rivian's system uses a flat plate in between the two layers of batteries … a perfect solution when you are stacking layers of batteries.

external_image

The only problem is that the flat plate cooling concept does not cool nearly as effectively as Tesla’s cooling snake, where cells are glued to the cooling tube. That brings us to Tesla’s patent application where it talks about using an engineered dielectric fluid for the cooling fluid. The battery cells are directly immersed in the cooling fluid, thus providing great heat transfer.

external_image

The cooling fluid for the cells surrounds the cells and is either circulated through the pack as illustrated in the patent app or does not circulate except for natural convection within the pack modules. We suspect this is what Porsche is using to make its flat plate cooling system work in Taycan and what Audi is using in its SUV. So, picture no cooling snake, but instead, a flat cooling plate, and/or an engineered fluid.

What about the cells? We speculate Tesla will use thicker electrode cells made with Maxwell’s dry electrode manufacturing process for increased energy density using today's chemistry. Thicker electrodes mean lower C rates. That’s why the Cybertruck and Semi are perfect applications … because they have big batteries (lower C rates). We are estimating 250 kWh for the Cybertruck 500-mile variant (ref) and 900 kWh for the 500-mile semi. Also of note, Electrek just reported that a hacker has found evidence of a 100 kWh battery for Model 3 (ref).

The other thing big batteries have going is that they have lower internal resistance, so they generate less heat and don’t require as much cooling.

external_image

In short, a whole new way of making battery packs that ditches today's pack architecture and significantly lowers cost with a whole new manufacturing process.
