WeberAuto Examines The Chevy Bolt EV's Battery Coolant System

Professor Kelly also breaks down the electronics and cabin coolant systems of the Bolt

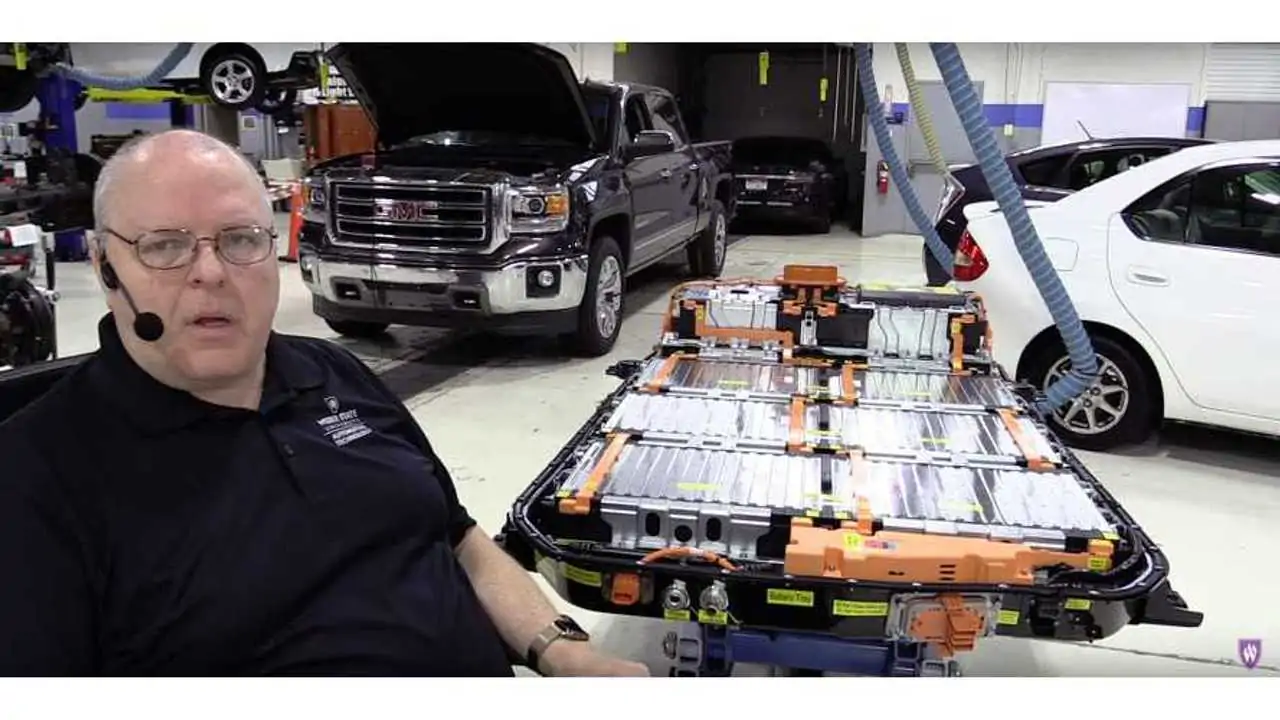

For the past several months, Professor John Kelly at WeberAuto has been posting a series of videos on the 2017 Chevy Bolt EV. He has aimed to explain the operation of the car and provide info on diagnosing and repairing the vehicle. So far, most of those looks have been at the battery pack. Including an excellent disassembly and reassembly of the vehicle's battery pack. This time, John gives an overview of the three separate coolant systems of the Bolt.

More About The Chevy Bolt Battery

Check Out The Chevy Bolt EV High Voltage Components In Detail

First up, John takes a look at the cooling of the the electronics and the motor. (4:12) Next he examines the "rechargeable energy storage" coolant system. (16:28) That is to say, the system of cooling plates that located beneath the battery pack. This allows the vehicle to warm or cool the pack as necessary. Keeping an electric vehicle's battery at the optimum temperature is important for a number of reasons including battery longevity. (Hopefully Nissan is watching this.) Finally, John briefly overviews the final system: the cabin heater coolant system. (28:40)

As expected, the video is very technical in nature. So rather than summarize, we will leave the details to the expert. Be sure to check out the full video above.

Video description from WeberAuto

See the three different coolant system loops of the Chevrolet Bolt EV high voltage system. Learn how they are connected and how they function.

...

Chevrolet Bolt EV high voltage electrical system coolant system loops - A Youtube first! Weber State University (WSU) - Department of Automotive Technology - Ardell Brown Technology Wing - Transmission Lab. This is the sixth in a series of videos on the 2017-2019 Chevrolet Bolt EV
