Nissan has taken the wraps off the 2016 Nissan LEAF, and the company did not disappoint on earlier range expectations as both the SV and SL trims now come equipped with a 30 kWh battery, giving the LEAF 107 miles (172 km) of EPA rated range, as well as a new 8 year/100,000 mile battery warranty.

Related - 2018 Nissan LEAF Gets 151-Mile EPA Range Rating, MPGe/Efficiency Disappoints

Cheap LEAFs - 5-Year Depreciation Of $27,170 = Used Nissan LEAFS Are A Steal

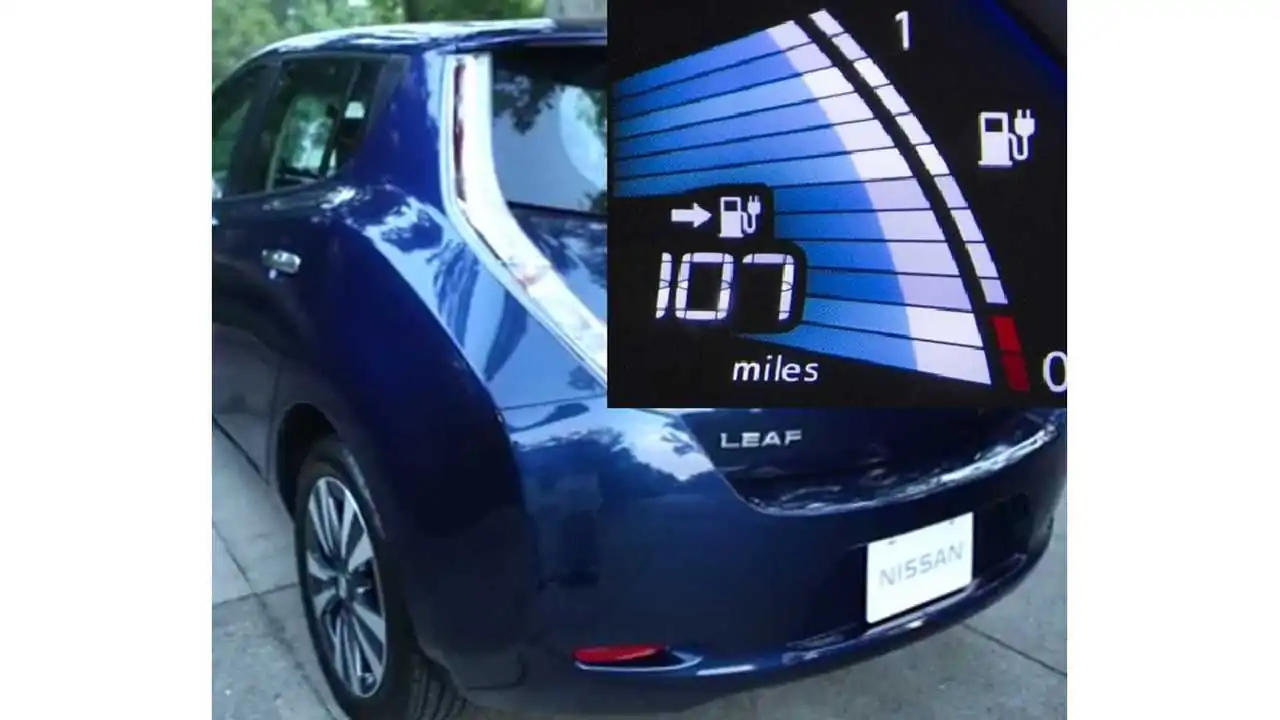

2016 Nissan LEAF - Now With 107 Miles Of Range!

2016 Nissan LEAF - Now With 107 Miles Of Range!

The base S trim level still comes with 2015 model year's 24 kWh battery, good for 84 miles of range.

As for pricing, the base Nissan LEAF remains unchanged at $29,010 (+$850 delivery), while the extra 23 miles found in the SV and SL trims see the prices increase anywhere from $1,600 (SL) to $2,100.

After the federal government's incentive is factored in, a 107 mile LEAF will set you back at least $26,700 before any dealer or state-level incentives are applied:

* - Nissan LEAF S - $29,010 ($29,010) * - Nissan LEAF SV - $34,200 ($32,100) - now includes standard quick charging * - Nissan LEAF SL - $36,790 ($35,170)

 (full spec sheet on the 2016 Nissan LEAF can be found below, all prices +$850 delivery)

Battery Issue? Nissan LEAF 30-kWh Battery Degrades More Rapidly Than 24-kWh Pack

A larger battery also means a greater sweet spot for fast charging, hence all the new 30 kWh LEAFs can now be quick-charged to 80% (from the low battery warning) in about 30 minutes, which nets about 22% more miles of range over that of the base S trim.

Ok, We Admit The 250 Kilometer Range (NEDC) Rating In Europe Certainly Looks Cooler

Ok, We Admit The 250 Kilometer Range (NEDC) Rating In Europe Certainly Looks Cooler

Level 2 charging stays at 6.6 kW and a full charge will set SV and SL LEAFs back about 6 hours, as opposed to 5 hours with the 24 kWh battery.

Internationally: If you happen to reside in Europe, the 2016 Nissan LEAF gets a new 155 mile/250 km rating based on the NEDC system.

Pricing on the longer range Acenta and Tekna trim grades has yet to be announced across all of Europe, but in the UK, the 30 kWh LEAF Acenta starts from £24,490 (OTR with PiCG), and from £26,490 on the 30 kWh Tekna trim level.

2016 Nissan LEAF SV/SL Interior (w/black leather)

2016 Nissan LEAF SV/SL Interior (w/black leather)

2016 Nissan LEAF Interior (beige/cloth)

2016 Nissan LEAF Interior (beige/cloth)

Additionally, the base LEAF (S trim) now comes with a standard 5" screen (as opposed to the "no screen" console found in the 2015 model), with the 7" screen in the SV and SL trims continuing in the new 2016 edition.

Nissan says the infotainment and connectivity features have been enhanced and improved for the 2016 model under the standard "Nissan Connect" banner.

A new graphic interface is now found inside the 2016 LEAF, as well as charging screen data that is updated every time the car is put into use.

The Nissan Connect EV telematics systems allows for all the remote connection functions to the vehicle one would expect, but also touts improved voice recognition, and an improved mobile app.

2016 Nissan LEAF New Heads-Up Display Menu

2016 Nissan LEAF New Heads-Up Display Menu

"Audio, entertainment and connectivity upgrades start with the addition of standard NissanConnect with Mobile Apps with 5.0-inch color display for LEAF S models. The system includes Bluetooth® Hands-free Phone System, Streaming audio via Bluetooth®, Hands-free Text Messaging Assistant and USB connection port for iPod® interface and other compatible devices.

2016 LEAF SV and SL grades add standard NissanConnect with Navigation and Mobile Apps–featuring a 7.0-inch color display with multi-touch control, Nissan Voice Recognition for navigation and audio, HD radio, and SiriusXM Travel LinkTM for weather, fuel prices, movie listings, stock info and sports (SiriusXM subscription required, sold separately). The menu screen graphics and customization process have been improved and charging screen information is now automatically updated every time the ignition is turned on and with every 12 miles of driving."

2016 Nissan LEAF

2016 Nissan LEAF

2016 Nissan LEAF New 30 kWh Battery Module

2016 Nissan LEAF New 30 kWh Battery Module

On the 30 kWh battery itself:

“The new battery offers more advantages than just the 27 percent increase in driving range – it also offers improved battery performance,” said Andrew Speaker, director, Nissan EV Sales & Marketing

The 30 kWh battery resides in the same battery space under the LEAF as the existing 24 kWh pack, and weighs just 46 pounds (21 kg)more.

"Improved electrode material with revised chemistry results in higher power density and enhanced battery durability upon charge and discharge."

Basically, the introduction of Carbon, Nitrogen and Magnesium to the electrodes improves performance of the cells, while Nissan adds the "change to the cell layout also contributes to the gain", although we aren't quite sure how.

As evidence of a growing confidence in the 30 kWh battery's cell chemistry (and the fact it will now take less battery cycles to go further), Nissan warrants battery loss below 9 bars of capacity (70%), for the first 8 years or 100,000 miles (160,000 km) in the US and in Europe.  The warranty on the S trim stays consistent with that of the 2015 LEAF, at 5 years or 60,000 miles.

As for the actual pack structure, the original 24 kWh battery is made up of 48 modules composed of 4 cells each, for a total of 192 cells. The new 30 kWh battery has double the cells per module (8), but still 192 cells in total.  Nissan once again points to automotive-specific battery formats as a superior commodity.

"Unlike conventional cylindrical batteries, the thin, compact laminated cells offer more flexibility in packaging and design applications."

New 2016 Nissan LEAF In Forged Bronze Spotted Earlier This Month (via <a href=JPWhiteNissanLEAF)" draggable="false">

New 2016 Nissan LEAF In Forged Bronze Spotted Earlier This Month (via JPWhiteNissanLEAF)

New 2016 Nissan LEAF Color Palette

New 2016 Nissan LEAF Color Palette

New Colors:

As expected, three colors have been added to the 2016 LEAF lineup, while two have left the building.

* - New Colors: Forged Bronze, Coulis Red and Deep Blue Pearl * - Deleted Colors: Cayenne Red and Morningsky Blue

Efficiency and Performance:

The entry level LEAF S retains the same 84 miles of range as last year's model, as well as the 126 MPGe city/108 MPGe highway efficiency rating, which is good for a combined 114 MPGe.

The LEAF SV/SL with 107 miles of range has a slightly lower city rating than the base model - registering 124 MPGe, and an identical 108 MPGe highway score, which lowers the combined rating slightly to 112 MPGe.

All three trim levels feature the same 107 horsepower and 187 lb-ft of torque output as in the previous model year, while the S trim level has an optional "Charge Package" that upgrades the base model to the same 6.6 kW charging (from 3.6 kW) as well as adding the CHAdeMO fast charging port that comes standard in the SV and SL trims.

2016 Nissan LEAF Now Gains 22% More Miles During A 30 Minute Quick-Charging Session

2016 Nissan LEAF Now Gains 22% More Miles During A 30 Minute Quick-Charging Session

Production and Release date:

The New 2016 Nissan LEAF Takes A Spin In Europe (in Gun Metallic Color)

The New 2016 Nissan LEAF Takes A Spin In Europe (in Gun Metallic Color)

We also took advantage of a chat with Nissan earlier this week to pepper them about when the 2016 Nissan LEAF would be available, but all they would commit to was that the "2016 LEAF will go on sale later this fall".

So somewhere between September 23nd and December 31st then Nissan?

Our own sources indicate that 2016 Nissan LEAF production actually began in earnest in August in Smryna, TN, although mid-October seems to be when the 'sales ball' might get rolling for the 2016 LEAF.

For Europe, the new, longer range Nissan LEAF will still be produced at the company's Sunderlank, UK facility, but sales begin a little later - in January 2016.

New 2016 Nissan LEAF Batteries (both chemistries) Are Made Next Door To Manufacturing Facility In Smyrna, TN

New 2016 Nissan LEAF Batteries (both chemistries) Are Made Next Door To Manufacturing Facility In Smyrna, TN

Nissan LEAF SV and SL Trim Level Also Adds:

2016 Nissan LEAF Standard 17

2016 Nissan LEAF Standard 17" Tires (SV/SL)

* - 2016 Nissan LEAF SV:

  • Quick Charge Port
  • 6.6 kW onboard charger
  • NissanConnect with Navigation and Mobile Apps
  • NissanConnect EV
  • 7.0-inch color display with multi-touch control
  • six-speaker audio system
  • hybrid heater system that provides superior cold weather performance while consuming less energy
  • heated outside mirrors and steering wheel
  • 17-inch aluminum-alloy wheels.
* - 2016 Nissan LEAF SL:
  • photovoltaic solar panel spoiler
  • fog lights
  • LED low beam auto on/off headlights
  • cargo cover
  • HomeLink® Universal Transceiver
  • leather-appointed seats
  • heated rear seats
---

Just two option packages are now offered:

* - Quick Charge Package (S grade only) - adds Level 2 6.6 kW onboard charging (deletes 3.6 kW charging) and Quick Charge Port (CHAdemo)

* - Premium Package (SV and SL times) - adds Around View® Monitor and Energy Efficient Series Bose® seven- speaker audio.

Special note to Canadians:

The majority of the changes you see here will also be found on your 2016 Nissan LEAF with a couple of exceptions.

Cold Weather And A Strong US Dollar Is Giving Canadians A Great Deal On The 2016 Nissan LEAF

Cold Weather And A Strong US Dollar Is Giving Canadians A Great Deal On The 2016 Nissan LEAF

You don't get the "Forged Bronze" color option - which is ok, it is unlikely to be very popular because, well...it's brown.  You will also be losing the "Glacier White" color option; although isn't "Pearl White" enough anyway?  But, you do finally get the standard 17" wheels on the SV, like those of us in the US.

As a special 2016 perk, Canadians don't have to buy the "Quick Charge" package in the base S trim, because it now comes standard with both 6.6 kW L2 charging, and the quick charge port - although you still will be paying the around $32,000 for the base model (but don't convert that to US dollars Americans, as that's only a little over $24k)

Only the black interior is available.

As it is significantly colder on average in Canada than the US, all LEAF models come standard equipped with a heated steering wheel and both heated front and rear seats.

Editor's Note:  This is not the next generation of the Nissan LEAF, but rather an upgraded version of the last model year of the first generation car.  The all-new, next generation Nissan LEAF (with an estimated 170-200 miles of range) is expected to arrive in Q2 of 2017.

Full 2016 Nissan LEAF specs can be found below:

2016 Nissan LEAF Specs - Page 1 (click to enlarge)

2016 Nissan LEAF Specs - Page 1 (click to enlarge)

2016 Nissan LEAF Specs - Page 2 (click to enlarge)

2016 Nissan LEAF Specs - Page 2 (click to enlarge)

2016 Nissan LEAF Specs - Page 3 (click to enlarge)

2016 Nissan LEAF Specs - Page 3 (click to enlarge)

2016 Nissan LEAF Specs - Page 4 (click to enlarge)

2016 Nissan LEAF Specs - Page 4 (click to enlarge)
