Daimler has announced that its new hydrogen fuel cell car with enter production in 2017 - the Mercedes-Benz GLC F-CELL.

The F-CELL will also be the first series produced FCV with plug-in charging capabilities.

Up until this point, we had wondering why Toyota, Honda or Hyundai had yet to offer a larger on-board battery pack with the option to plug-in, for those who would like to also use their FCVs in all-electric mode (just like plug-in hybrids) on shorter trips.

Overnight and occasional day-charging would be especially useful in these early days of the hydrogen vehicle's introduction, due to the lack of a refueling infrastructure. Instead of these feature, we saw Toyota and Honda export power only through DC CHAdeMO inlet (without any charging capability of their tiny batteries).

In the case of Mercedes-Benz GLC F-CELL, Daimler has decided to use a 9 kWh lithium-ion battery (similar in size to other European plug-in hybrids).

According to the German manufacturer, the GLC F-CELL's battery will enable all-electric driving up to 50 km/31 miles (NEDC rating) prior to using any hydrogen for the next ~450 km.  Of course, in real world driving (EPA), the all-electric range probably will be closer to 30 km (20 miles).

The fuel cell stack is installed in the engine compartment, while the lithium-ion battery occupies part of the trunk space. The two carbon-fiber-encased tanks that are used to store 4 kg of hydrogen are located in the middle and under the rear seats.

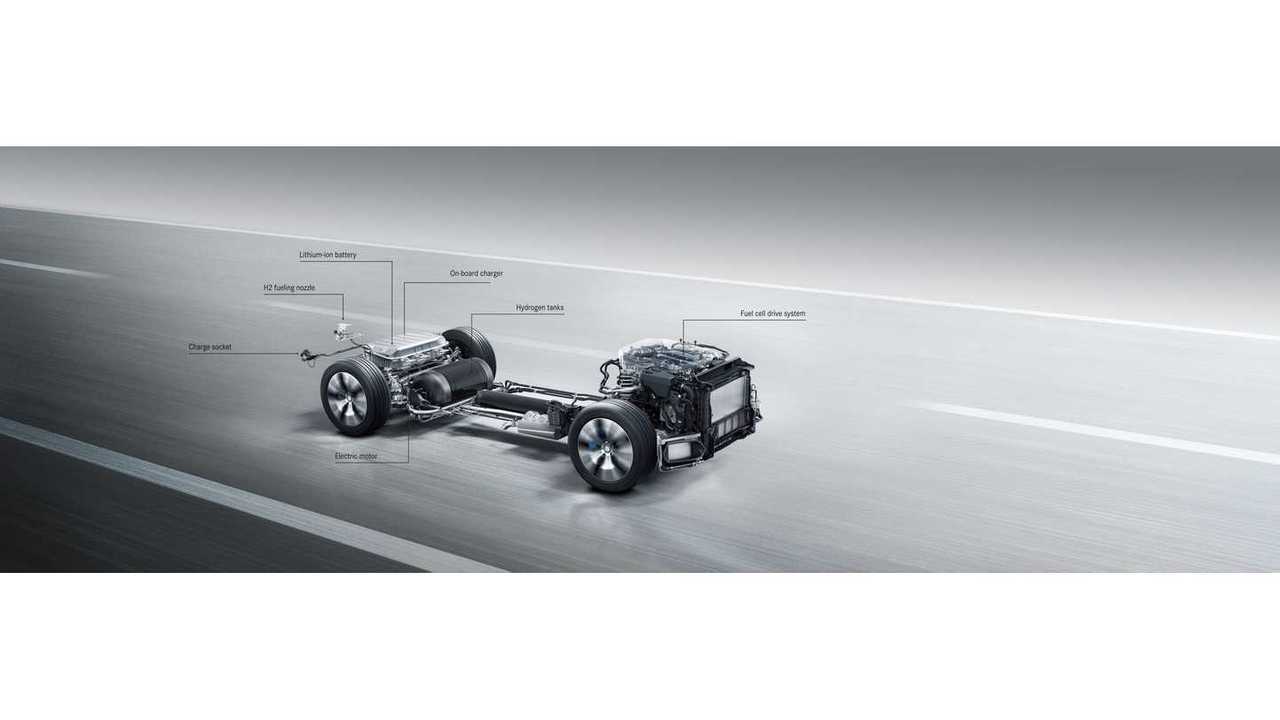

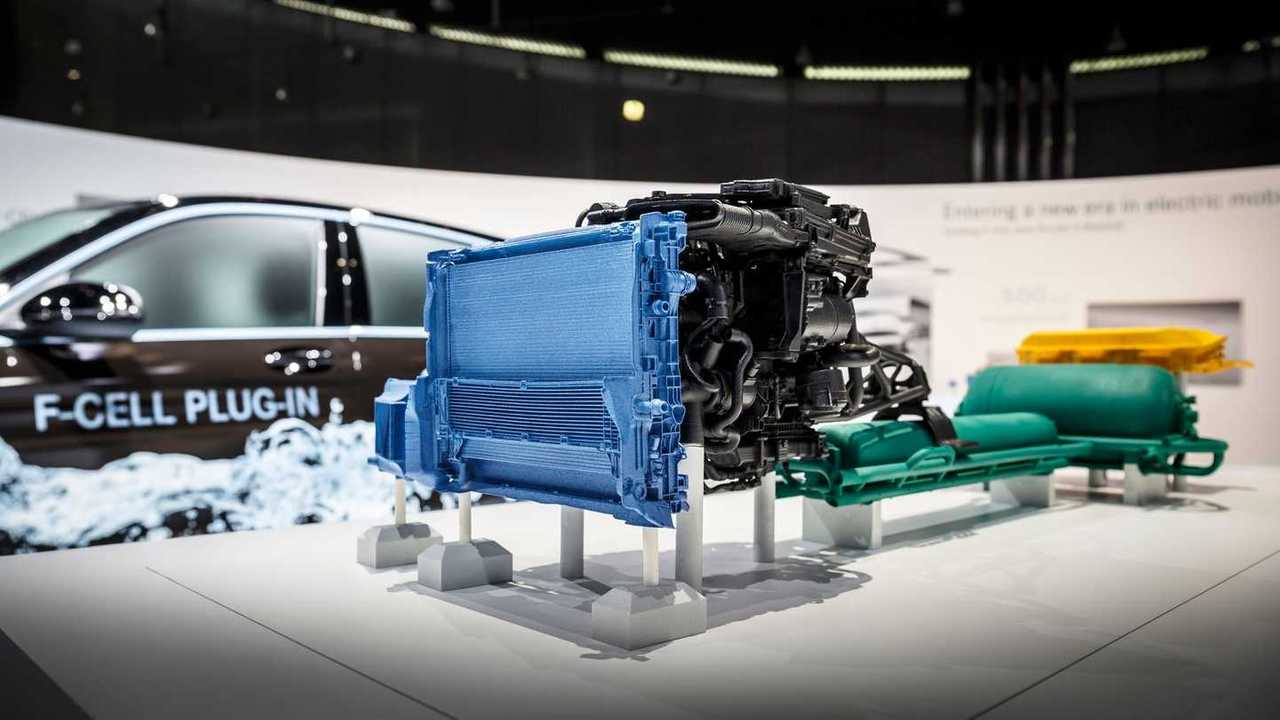

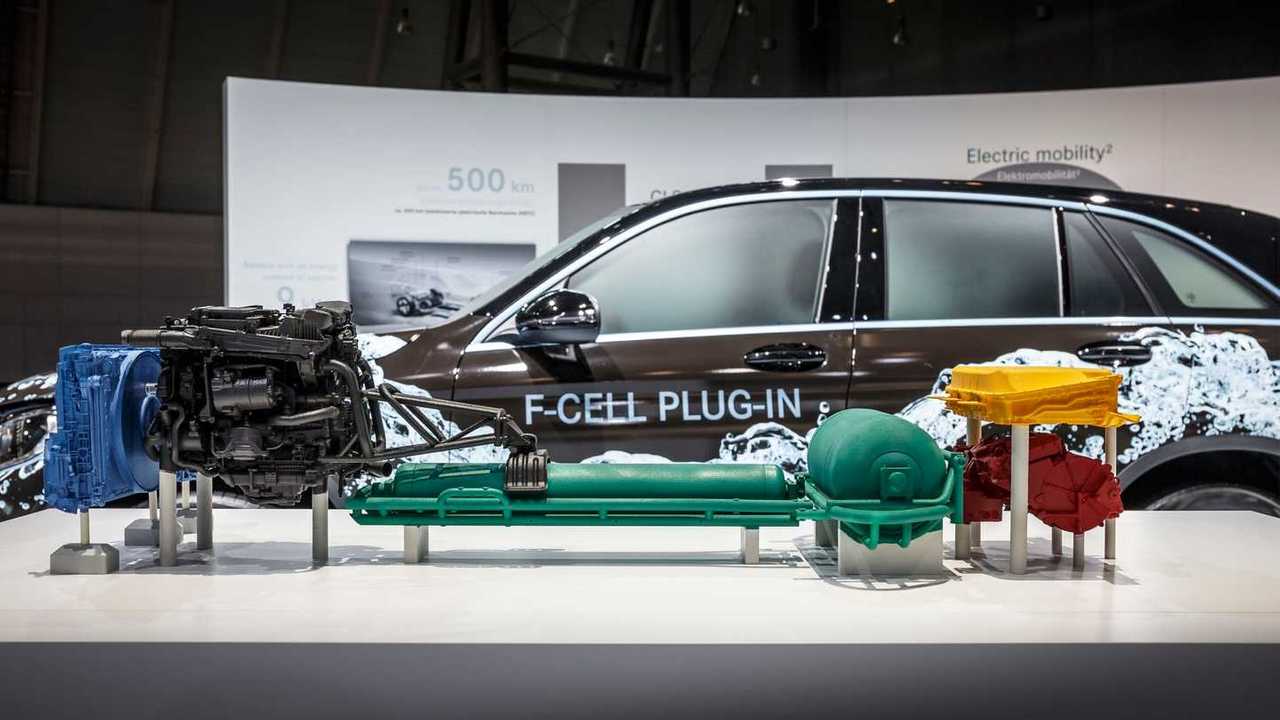

The drive system of the Mercedes-Benz GLC F-CELL. The next generation Mercedes-Benz fuel cell electric vehicle will use F-CELL PLUG-IN technology.

The drive system of the Mercedes-Benz GLC F-CELL. The next generation Mercedes-Benz fuel cell electric vehicle will use F-CELL PLUG-IN technology.

The drive system of the Mercedes-Benz GLC F-CELL. The next generation Mercedes-Benz fuel cell electric vehicle will use F-CELL PLUG-IN technology.

The drive system of the Mercedes-Benz GLC F-CELL. The next generation Mercedes-Benz fuel cell electric vehicle will use F-CELL PLUG-IN technology.

The drive system of the Mercedes-Benz GLC F-CELL. The next generation Mercedes-Benz fuel cell electric vehicle will use F-CELL PLUG-IN technology.

The drive system of the Mercedes-Benz GLC F-CELL. The next generation Mercedes-Benz fuel cell electric vehicle will use F-CELL PLUG-IN technology.

The drive system of the Mercedes-Benz GLC F-CELL. The next generation Mercedes-Benz fuel cell electric vehicle will use F-CELL PLUG-IN technology.

The drive system of the Mercedes-Benz GLC F-CELL. The next generation Mercedes-Benz fuel cell electric vehicle will use F-CELL PLUG-IN technology.

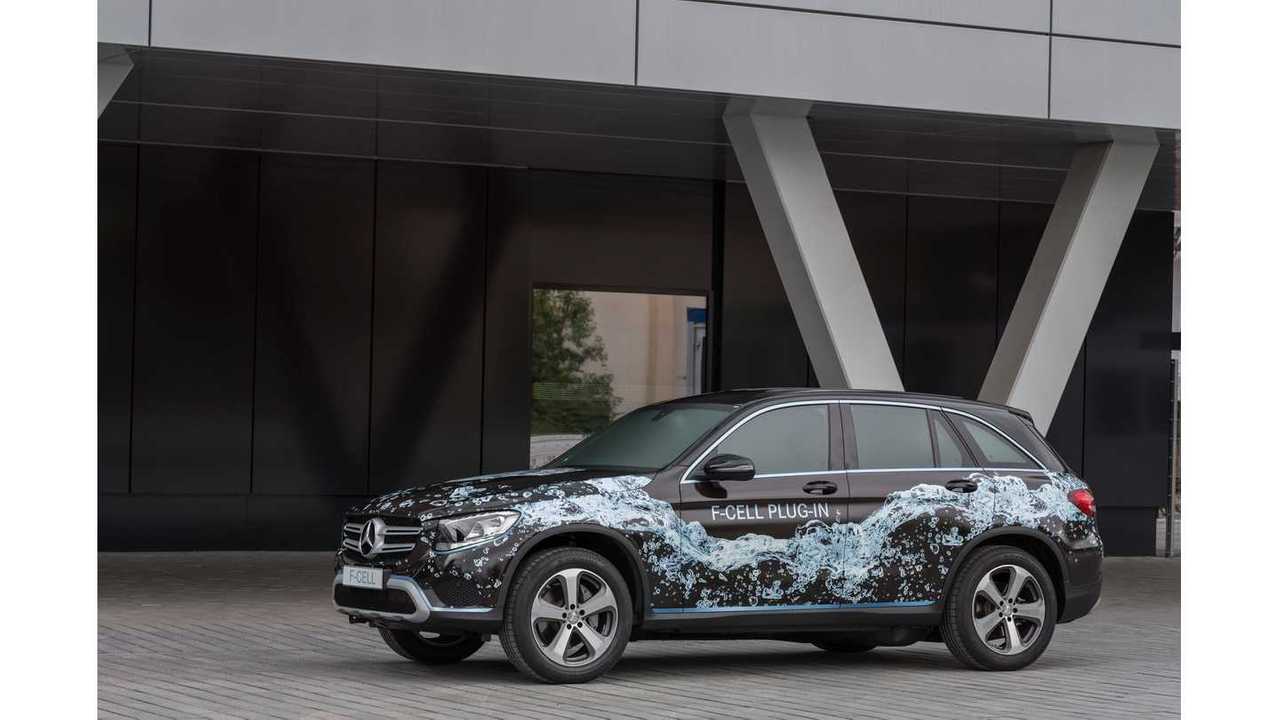

The next generation Mercedes-Benz fuel cell electric vehicle: Mercedes-Benz GLC F-CELL prototype

The next generation Mercedes-Benz fuel cell electric vehicle: Mercedes-Benz GLC F-CELL prototype

Mercedes-Benz GLC F-CELL spec:

  • 4 kg hydrogen tanks (700 bar) and 9 kWh litium-ion battery, good for a total of 500 km (310 miles) NEDC range
  • 50 km (31 miles) NEDC all-electric range on the battery alone (~30km/20 miles real world)
  • charging capability
Press release:

Under the microscope: Mercedes-Benz GLC F-CELL: The fuel cell gets a plug

Fuel-cell technology is an integral part of Daimler's drive system strategy. Because the advantages are clear: a long operating range and short refuelling stops as well as a broad spectrum of possible uses ranging from passenger cars to urban buses. A new vehicle generation based on the Mercedes-Benz GLC is being launched in 2017. The Mercedes-Benz engineers joined forces with partners in the Daimler competence network to develop a new, compact fuel-cell system which for the first time fits into conventional engine compartments. The GLC F-CELL features a large lithium-ion battery as a further innovation of the next-generation fuel-cell vehicles. Rated at around 9 kWh, the battery serves as an additional energy source for the electric motor and can be charged externally by means of plug-in technology for the first time. Together with the further developed intelligent operating strategy, the combination of fuel cell and battery system offers maximum efficiency and comfort. With this set-up, the GLC F-CELL achieves a combined range of around 500 km in the NEDC.

The next generation Mercedes-Benz fuel cell electric vehicle: Mercedes-Benz GLC F-CELL prototype. Not only can the GLC F-CELL be refuelled with hydrogen in under three minutes at an appropriate filling station: convenient external charging of its high-voltage battery is also possible.

The next generation Mercedes-Benz fuel cell electric vehicle: Mercedes-Benz GLC F-CELL prototype. Not only can the GLC F-CELL be refuelled with hydrogen in under three minutes at an appropriate filling station: convenient external charging of its high-voltage battery is also possible.

Daimler relies on electric mobility with fuel cell. Vehicles such as the B-Class F-CELL and the Citaro FuelCELL-Hybrid urban bus have together now clocked up in excess of twelve million kilometres, clearly demonstrating that the drive concept is ready for market. The next technology advance is now imminent: working together with partners from its global competence network, Daimler AG has developed an all-new fuel-cell system. Around 30 percent more compact than previously, it can be fully housed in the engine compartment for the first time. The fuel cell developers have also further optimised the performance and operating range. Furthermore, the cost of the innovative technology has been slashed thanks largely to a 90-percent reduction in the amount of platinum used in the stack. From 2017, Daimler will be unveiling the new-generation fuel-cell technology based on the Mercedes-Benz GLC.

World first: plug-in fuel-cell drive goes into production

The next generation Mercedes-Benz fuel cell electric vehicle: Mercedes-Benz GLC F-CELL prototype

The next generation Mercedes-Benz fuel cell electric vehicle: Mercedes-Benz GLC F-CELL prototype

A lithium-ion battery for autonomous operation is being used in an electric vehicle with fuel cell for the first time. The powerful battery has a capacity of around 9 kWh and is housed at the rear of the SUV to save space. It allows the GLC F-CELL to run on purely battery-electric power for up to 50 km in the NEDC and can be conveniently charged at a standard household socket, a Mercedes-Benz wall box or a public charging station. Two carbon-fibre-encased tanks built into the vehicle floor hold around 4 kg of hydrogen. Thanks to the globally standardised 700-bar tank technology, the tank in the GLC F-CELL can be refilled at a hydrogen filling station within just three minutes, which is about the same amount of time it takes to refuel a car with an internal combustion engine.

The combination of fuel cell and plug-in battery is ideal given the progressive development of the hydrogen filling station infrastructure. The innovative plug-in fuel-cell drive combines the advantages of both zero-emission drive technologies and, thanks to its intelligent operating strategy, continuously optimises the use of both energy sources in line with the current operating situation. The system also features a recuperation function, for example, which allows energy to be recuperated and stored in the battery during braking and coasting phases. In total, the GLC F-CELL achieves a combined range of around 500 km in the NEDC.

The next generation Mercedes-Benz fuel cell electric vehicle: Mercedes-Benz GLC F-CELL prototype

The next generation Mercedes-Benz fuel cell electric vehicle: Mercedes-Benz GLC F-CELL prototype

Global competence network: access to key technologies

Part of the Daimler AG strategy involves ensuring direct access to key electromobility components. During development and production of the innovative fuel-cell drive, Daimler AG is able to call upon its global competence network. The centrepiece of the technology, the fuel-cell stack, was developed in Vancouver, Canada together with partner Ford in the Automotive Fuel Cell Cooperation (AFCC) joint venture. The stack is produced in the neighbourhood at Mercedes-Benz Fuel Cell (MBFC). Overall responsibility for the complete fuel-cell-drive assembly and the hydrogen storage system is developed from the Daimler subsidiary NuCellSys in Kirchheim/Nabern, Baden-Württemberg.

The next generation Mercedes-Benz fuel cell electric vehicle: Mercedes-Benz GLC F-CELL prototype

The next generation Mercedes-Benz fuel cell electric vehicle: Mercedes-Benz GLC F-CELL prototype

The Daimler strain plant Untertürkheim is responsible for an establishment for the fuel cell system installation, also at the location Nabern. The hydrogen tank system consisting of carbon-fibre-encased tanks is produced at the Daimler Mannheim plant while the lithium-ion battery comes from Daimler subsidiary Deutsche ACCUMOTIVE located in Kamenz, Saxony. Daimler is currently working systematically to prepare for series production of the Mercedes-Benz GLC F-CELL. The family-friendly SUV suitable for daily use is produced at the Mercedes-Benz Bremen plant, which acts as the competence centre for the model series. The GLC has been rolling off the production line there since July 2015. Regarding to the drive system integration of the GLC F-CELL, the partner EDAG supports the factory Bremen and will settle in the immediate work area.
